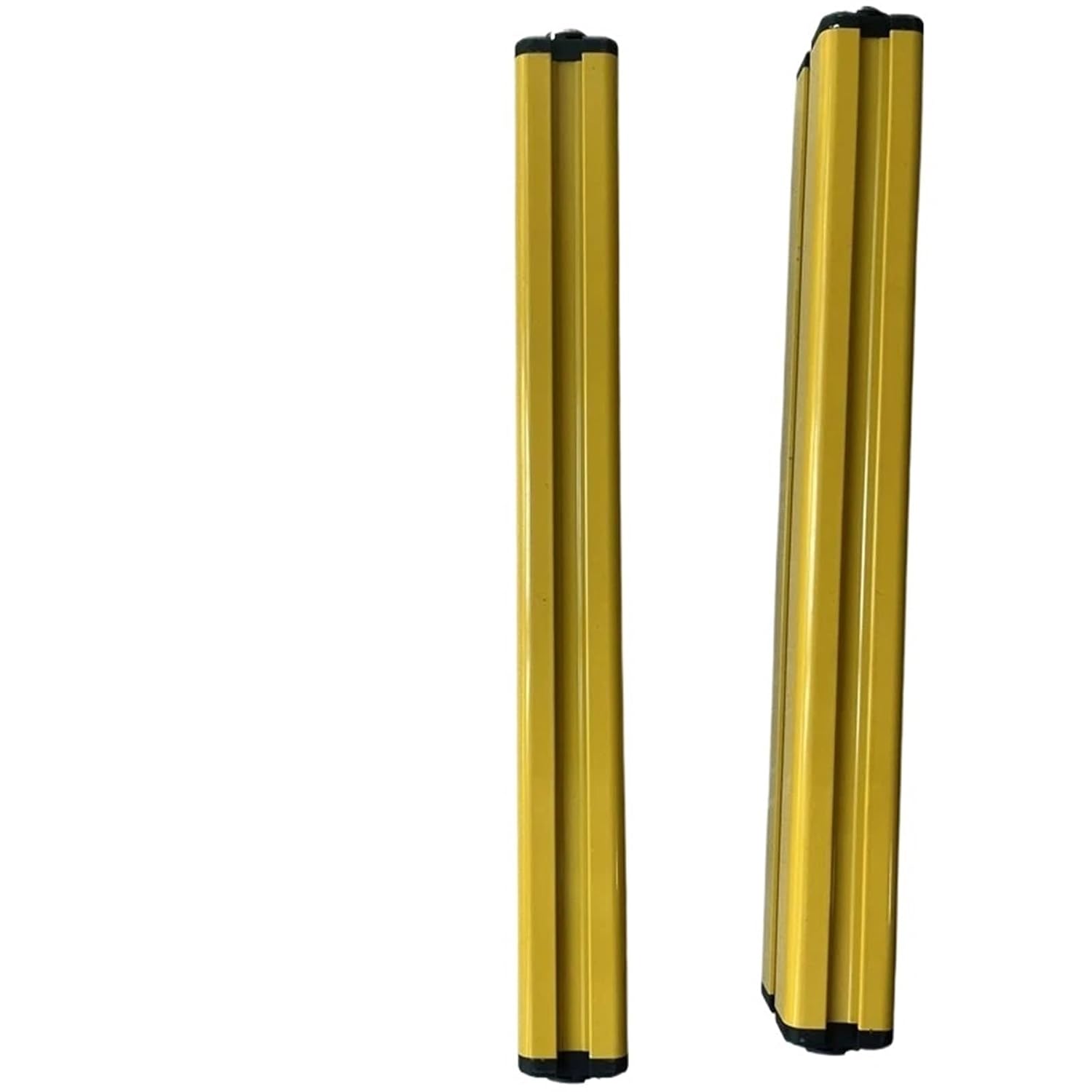

SN-H2024J 24 Beams 20mm Resolution Optical Synchronization SYNC Safety Light Curtain Sensor Infrared Sender Receiver(NPN NC)
Product details
| Management number | 250278726 | Release Date | 2026/09/17 | List Price | US$182.66 | Model Number | 250278726 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
SensorsModel: SN-H2024Joptical synchronizationMore thicker and more widerWidth: 485mmThickness: 355mmscanning range: 0.1-20mWorking Voltage: DC12-24V 50/60HZResponse time: 15ms<;200msOutput Current: 300mAMaximum power consumption: 5WProtection Circuit: Polarity Protection and Instantaneous Reverse Polarity ProtectionResidual Voltage: 1.VAmbient operating temperature: from -10 °C to 55 °C ( Not freezing )Ambient humidity: 20°C, 0-85%RHInsulation resistance: 20 mDielectric strength: AC1600V, 60sAnti light interference (incident angle 5 °) : Ambient light: maximum 10000 LuxIncandescent lamp: maximum 30000 LuxVibration resistance: Frequency: 10-55H2 Amplitude: 0.75MM, 2 hours in each direction of X, Y, ZShock resistance: 500M / S² (50G), X, Y, Z 3 times in each directionHousing: Aluminum alloyEnd cap: Reinforced nylonESD: 8KV Air Chage (level 3)/EN-61000-4-2; Buret Test: 2KV/EN6100-4-4; RF Interferenoe: 10V/M/ENV50140Threaded : more firm than snap-type Connectingoutput method:1 Relay output2 transistor NPN output3 transistor PNP output normally closed (PNP NC)4 transistor PNP output normally open (PNP NO)
- Sensors
- SN-H2024J 24 Beams 20mm Resolution Optical Synchronization SYNC Safety Light Curtain Sensor Infrared Sender Receiver
| ASIN | B0H41724VH |
|---|---|
| Brand | LIYRTZVH |
| Color | Npn Nc |
| Manufacturer | LIYRTZVH |
| Model Number | LIYRTZVH |
| Mfr Part Number | LIYRTZVH |
| Number of Items | 1 |
